Drip Trays

Bracton manufactures and imports a large range of beer font drip trays, made from quality 304 Grade Stainless Steel. Available in plinth, recessed or pressed.

beer-drip-tray
PLINTH DRIP TRAYS

Designed to sit on top of bench, Ideal for heavy fonts and fast to install.

Construction: Premium Stainless Steel 304G, resin filled for extra rigidity.

DT7010   355 x 250mm
DT7020   355 x 350mm
DT7030   355 x 450mm
DT7040   355 x 550mm
DT7050   355 x 750mm
DT7060   355 x 950mm
DT7070   355 x 1100mm
DT7080   355 x 1500mm

Note: Dimensions refer to internal tray area.

recessed-drip-tray(small)
RECESSED DRIP TRAYS

Designed to be countersunk into bar counter top, Ideal for fast timber installations.

Construction: Premium Stainless Steel 304G, resin filled for extra rigidity.

Link: Technician drawing

DT6010   355 x 250mm
DT6020   355 x 350mm
DT6030   355 x 450mm
DT6040   355 x 550mm
DT6050   355 x 750mm
DT6060   355 x 950mm
DT6070   355 x 1100mm
DT6080   355 x 1500mm

Note: Dimensions refer to internal tray area.
Specification and installation diagram

driptrays-pressed
PRESSED DRIP TRAYS

Low cost pressed stainless steel drip tray.

Construction: Stainless Steel 304G, includes plastic reinforcement pieces.

DT3010   400 x 400mm
DT3020   600 x 400mm
DT3030   800 x 400mm

driptrays-pressed-with-glassrinser
PRESSED DRIP TRAY WITH GLASS RINSER

Low cost pressed stainless steel drip tray with built in glass rinser.

Construction: Stainless Steel 304G

DT4010   400 x 400mm
DT4020   600 x 400mm
DT4030   800 x 400mm

driptrays-pressed-small

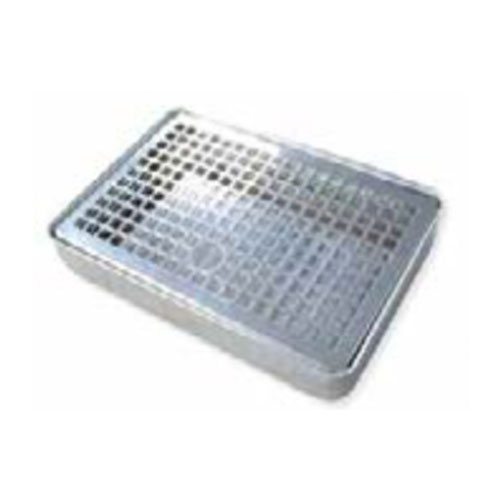

PRESSED SMALL DRIP TRAYS

Low cost pressed stainless steel drip tray.

Construction: Stainless Steel 304G.

DT5010   200 x 180mm
DT5020   300 x 180mm

drip-tray-clamp-on
BENCH CLAMP ON DRIP TRAYS

No tools required installation, simply side on to countertop and hand tighten clamp. Ideal for temporary installations.

Construction: Powder coat steel

62819   Standard with plastic clamp-on drip tray

56820   Premium with stainless clamp-on drip tray
